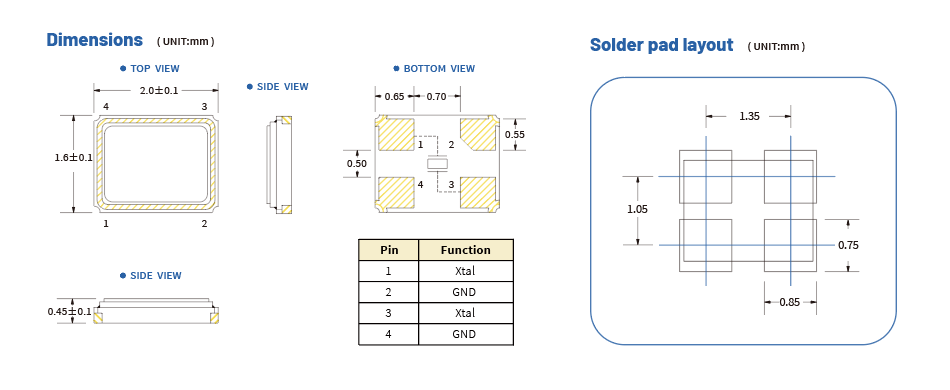

| 封裝規格[mm]: | 2.0×1.6×0.45, |
|---|---|
| 頻率范圍[MHz]: | 16 ~ 54 |
| 常溫頻差[10^-6@+25℃]: | ±10ppm |
| 工作溫度范圍: | -20℃ ~ +70℃, -40℃ ~ +85℃ |
| 產品特色: | Small Footprint, Ceramic Seam SMD |
| RoHS And 無鉛: | |
| 資料下載: | Datasheet |
| 商城購買: | |
Item | Symb. | Min. | Typ. | Max. | Unit | Notes |
Frequency Range | Freq. | 16.000 | 54.000 | MHz | ||
Oscillation Mode | Fundamental（AT-cut） | |||||
Frequency Tolerance | △f/f | ±10 | ppm | at 25℃±2℃ | ||
Operating Temperature | T_use | -20 | 70 | ℃ | ||
-40 | 85 | ℃ | ||||
Storage Temperature Range | T_sta | -55 | 125 | ℃ | ||
Shunt Capacitance | C0 | 3 | pF | |||
Drive Level | DL | 10 | 100 | μW | ||
Load Capacitance | CL | 6 | 20 | pF | ||
Equivalent Series Resistance | ESR | 200 | Ω | 16MHz≤ Freq. ＜24MHz | ||
80 | Ω | 24MHz≤ Freq. ＜26MHz | ||||
60 | Ω | 26MHz≤ Freq. ≤ 54MHz | ||||
Insulation Resistance | IR | 500 | MΩ | at DC 100V | ||
Aging | f_age | 3 | ppm | 1st. Year at 25℃ | ||
|
Operating Temperature Range | Frequency Stability | |||
±10ppm | ±15ppm | ±20ppm | ±30ppm | |
-20℃ to +70℃ | ▲ | ★ | ★ | ★ |
-40℃ to +85℃ | ▲ | ★ | ★ | |
★：Available ▲：Conditional | ||||
⑴. 需求描述 | |||||
選擇需要的封裝規格及產品系列：2.0×1.6mm；0X Series 選擇需要的頻率：16.000MHz 確定晶體的負載電容值（CL）：12pF 選擇需要的精度：±10ppm 選擇需要的工作溫度范圍：-40℃~+85℃ 您需要的產品是：1X Series 16MHz 12pF ±10ppm -40~+85℃ | |||||
| ⑵. 標準規格及型號 | |||||
| Nominal Frequency | Load Capacitance（CL） | Product Number | Nominal Frequency | Load Capacitance（CL） | Product Number |
| 16.000MHz | 8pF | *1B16.000F0810F30 | 27.120MHz | 8pF | *1B27.120F0810F30 |
| 9pF | *1B16.000F0910F30 | 10pF | *1B27.120F1010F30 | ||
| 10pF | *1B16.000F1010F30 | 12pF | *1B27.120F1210F30 | ||
| 12pF | *1B16.000F1210F30 | 30.000MHz | 8pF | *1B30.000F0810F30 | |
| 20.000MHz | 8pF | *1B20.000F0810F30 | 10pF | *1B30.000F1010F30 | |
| 10pF | *1B20.000F1010F30 | 12pF | *1B30.000F1210F30 | ||
| 12pF | *1B20.000F1210F30 | 32.000MHz | 8pF | *1B32.000F0810F30 | |
| 24.000MHz | 8pF | *1B24.000F0810F30 | 12pF | *1B32.000F1210F30 | |
| 9pF | *1B24.000F0910F30 | 37.400MHz | 8pF | *1B37.400F0810F30 | |
| 10pF | *1B24.000F1010F30 | 10pF | *1B37.400F1010F30 | ||
| 12pF | *1B24.000F1210F30 | 12pF | *1B37.400F1210F30 | ||
| 24.576MHz | 8pF | *1B24.576F0810F30 | 38.400MHz | 8pF | *1B38.400F0810F30 |
| 10pF | *1B24.576F1010F30 | 10pF | *1B38.400F1010F30 | ||
| 25.000MHz | 8pF | *1B25.000F0810F30 | 12pF | *1B38.400F1210F30 | |
| 10pF | *1B25.000F1010F30 | 40.000MHz | 8pF | *1B40.000F0810F30 | |
| 12pF | *1B25.000F1210F30 | 10pF | *1B40.000F1010F30 | ||
| 26.000MHz | 8pF | *1B26.000F0810F30 | 12pF | *1B40.000F1210F30 | |
| 10pF | *1B26.000F1010F30 | 48.000MHz | 8pF | *1B48.000F0810F30 | |
| 12pF | *1B26.000F1210F30 | 10pF | *1B48.000F1010F30 | ||
| 27.000MHz | 8pF | *1B27.000F0810F30 | 12pF | *1B48.000F1210F30 | |
| 10pF | *1B27.000F1010F30 | 50.000MHz | 8pF | *1B50.000F0810F30 | |
| 12pF | *1B27.000F1210F30 | 10pF | *1B50.000F1010F30 | ||
